Name: Evolution Aluminum Mast
Brand: Cedrus
Price: 600.0 USD
Availability: OutOfStock

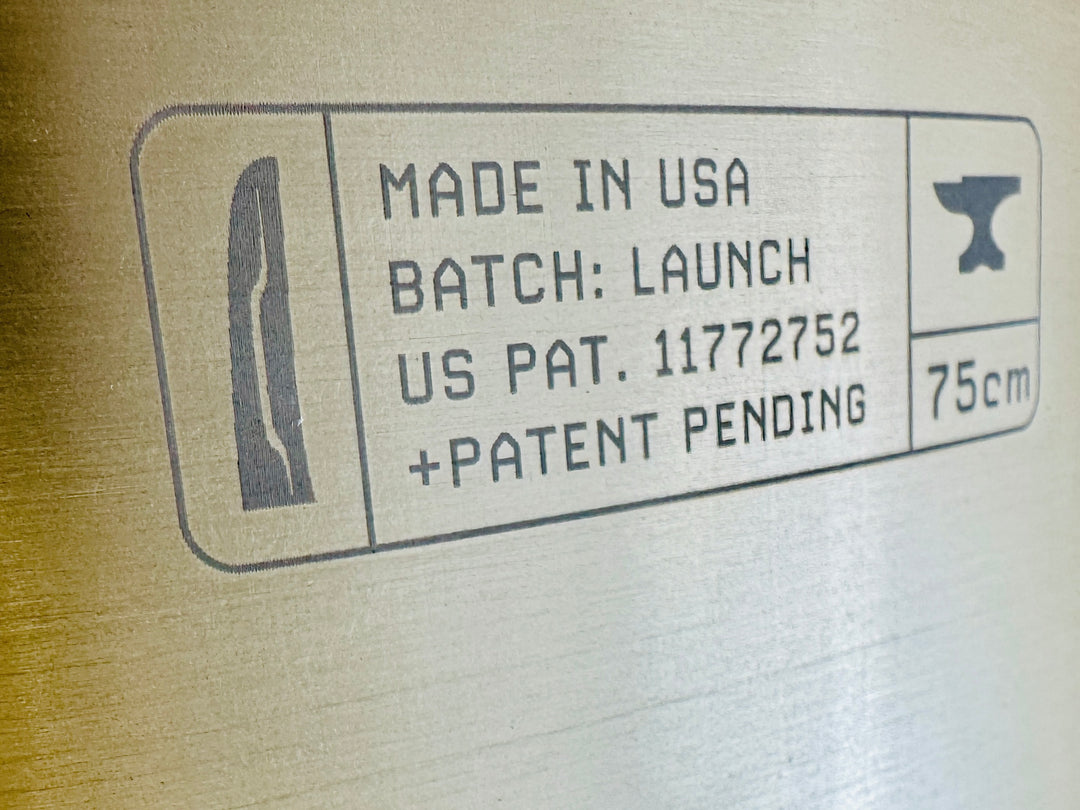

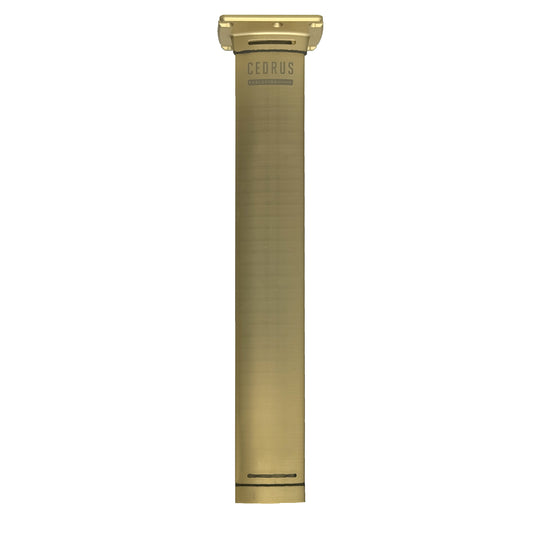

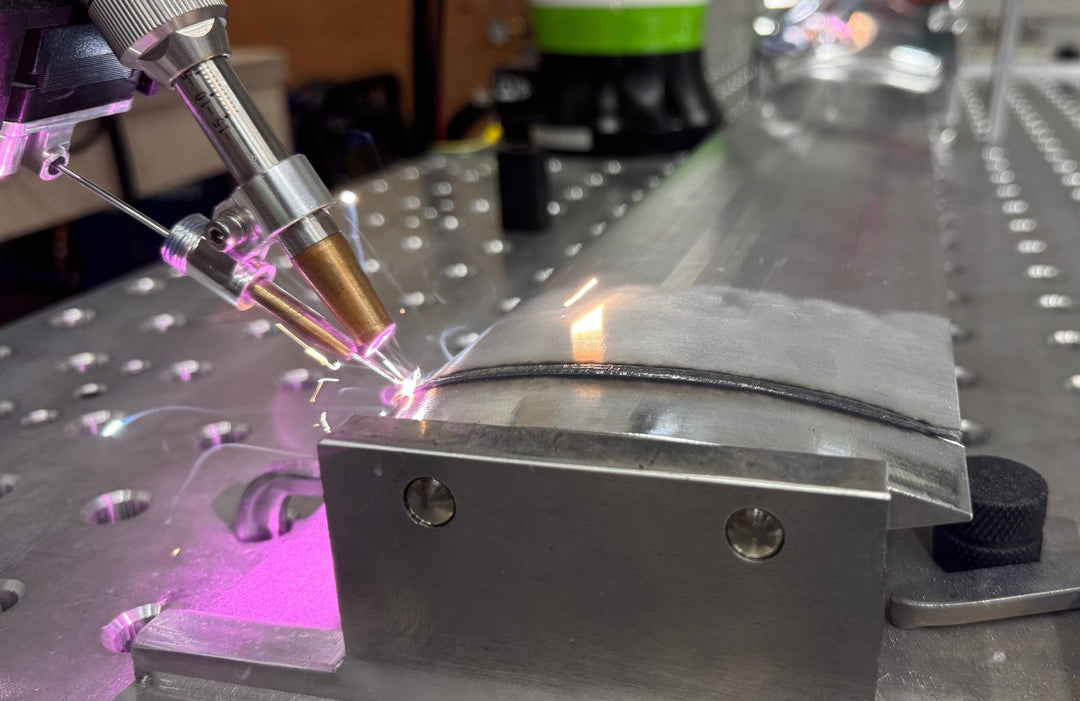

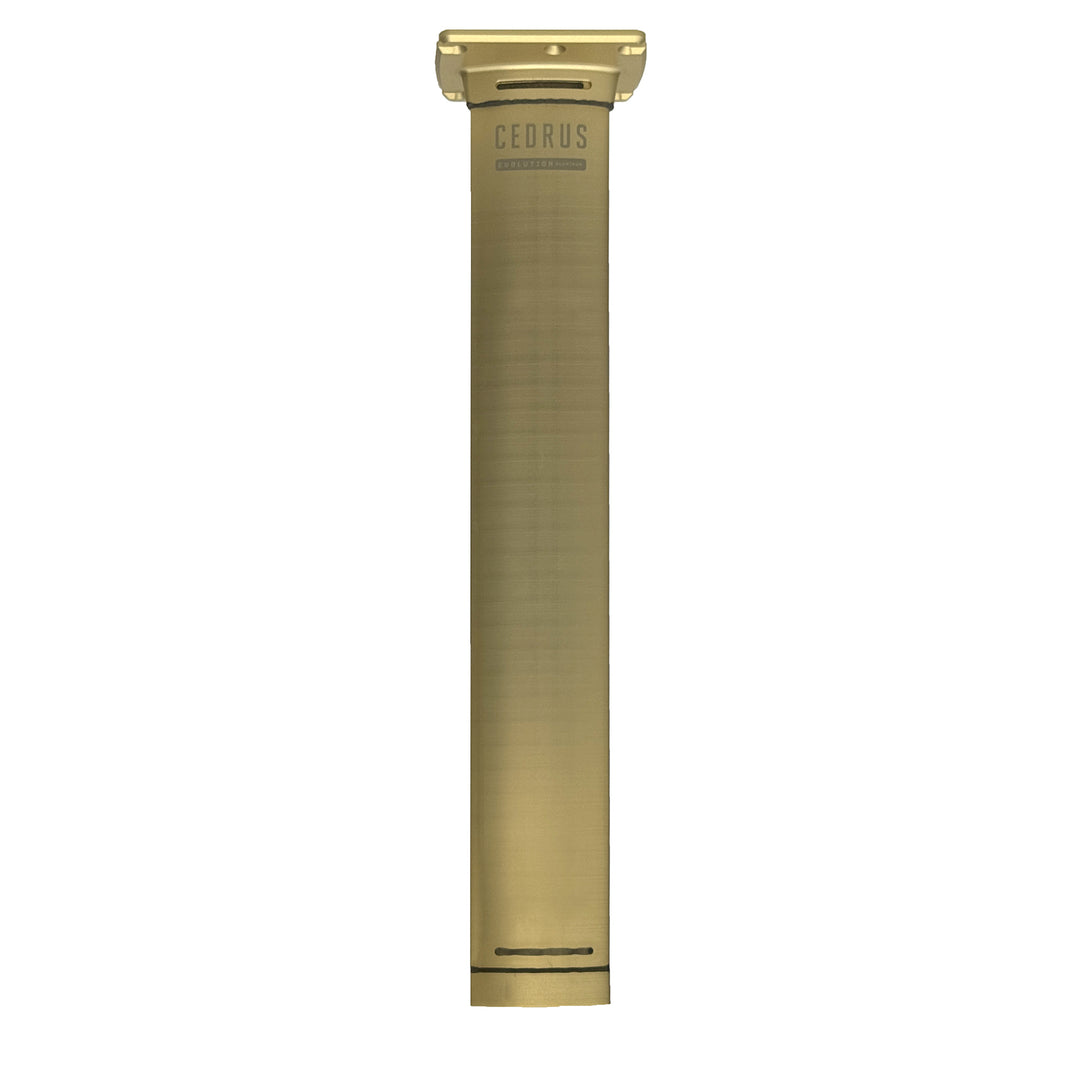

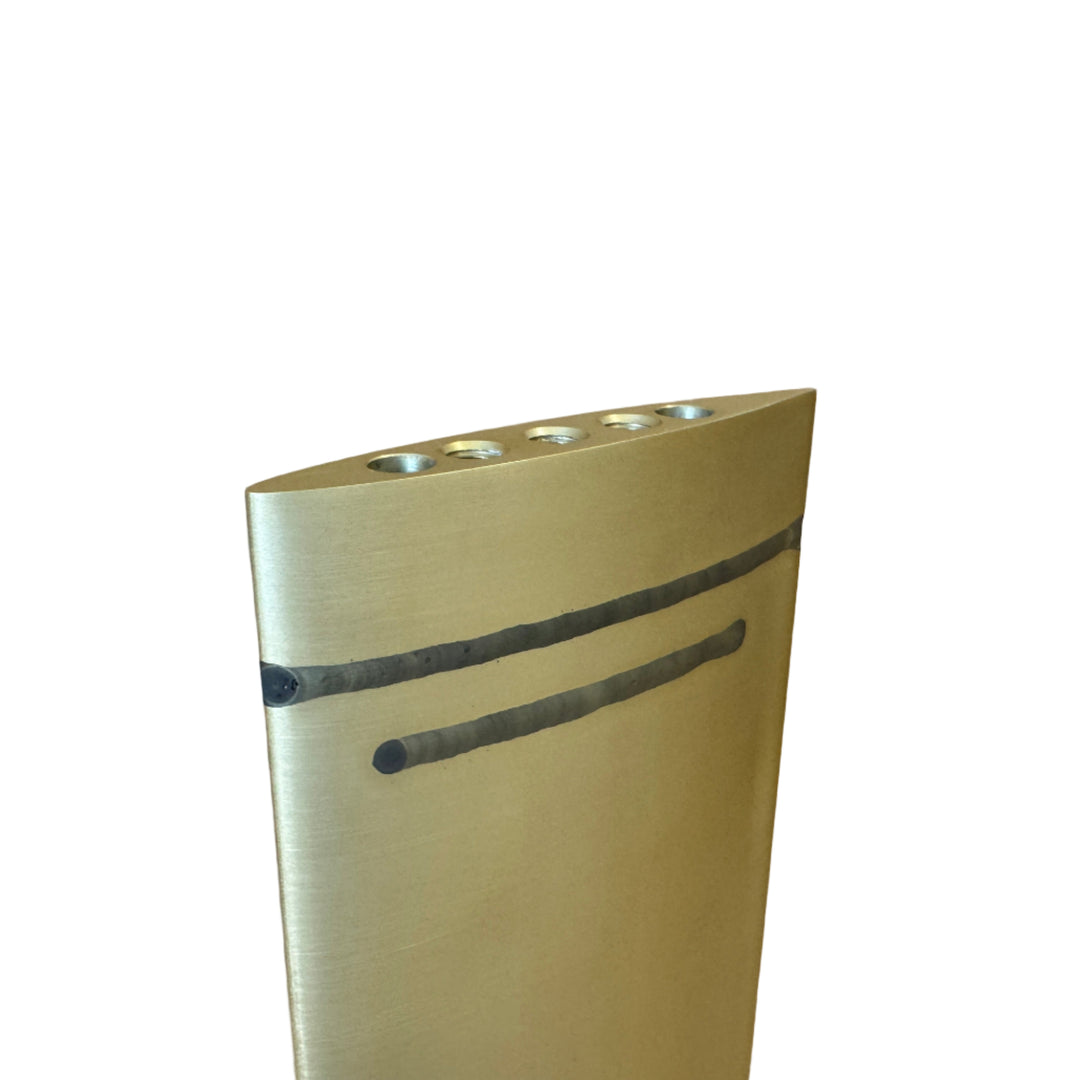

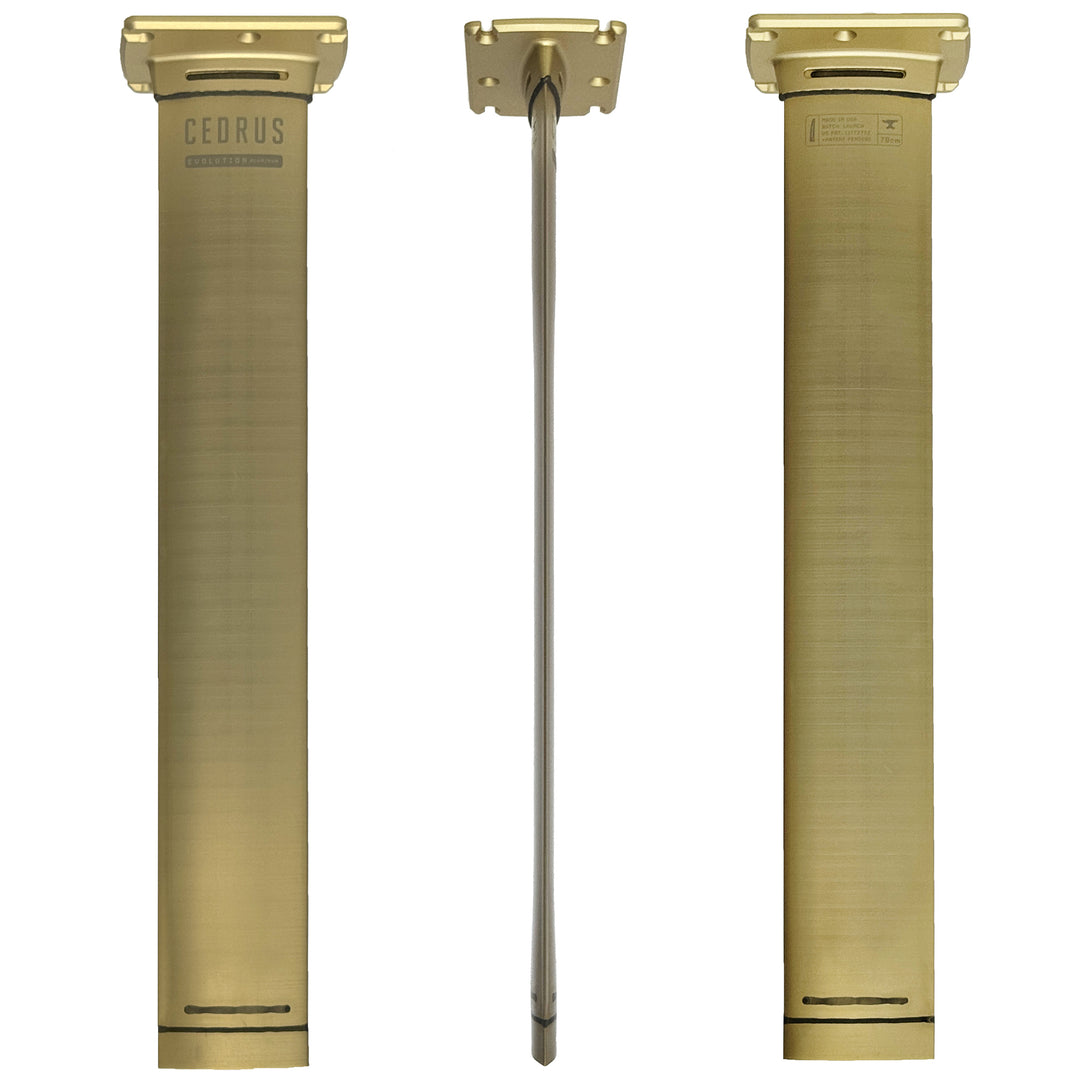

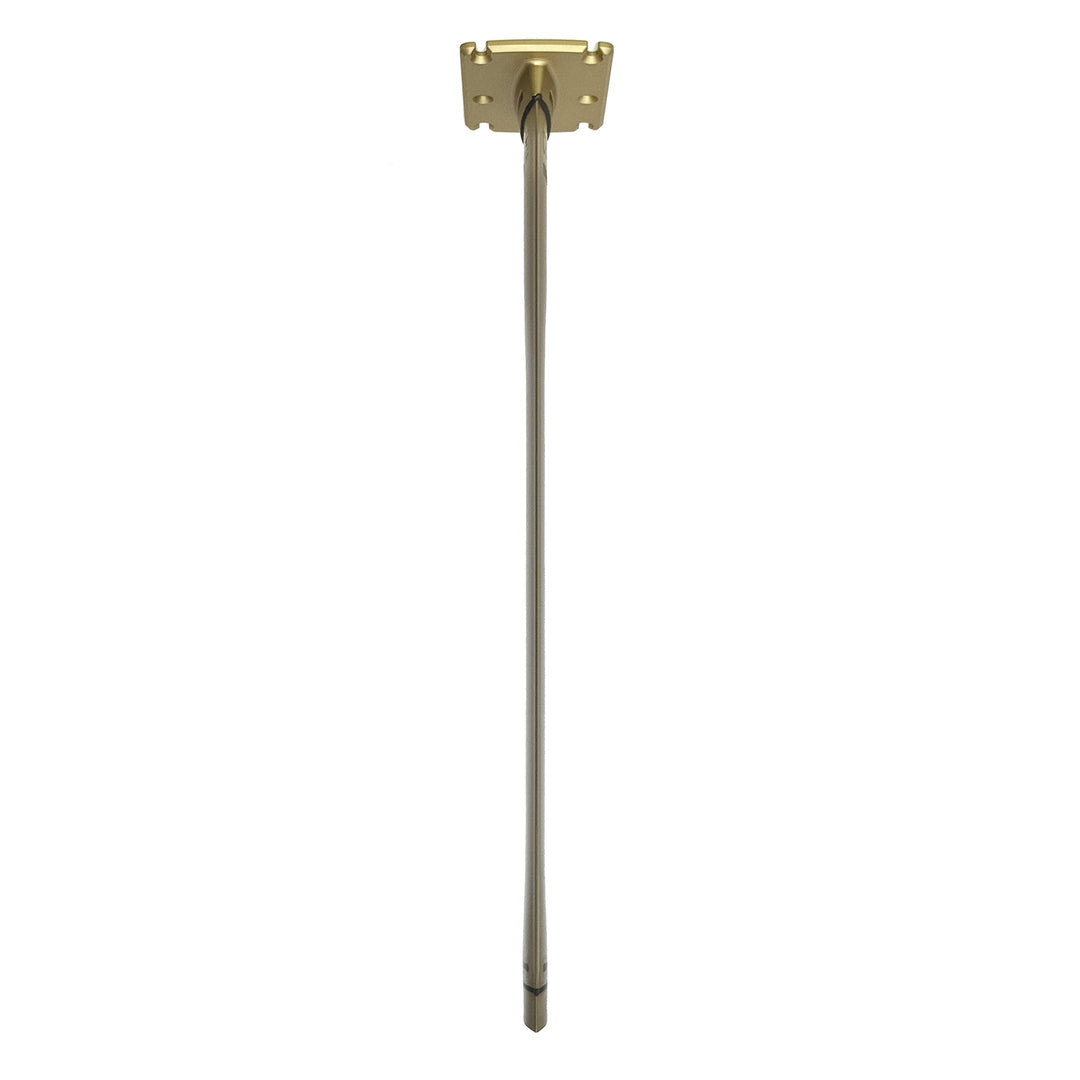

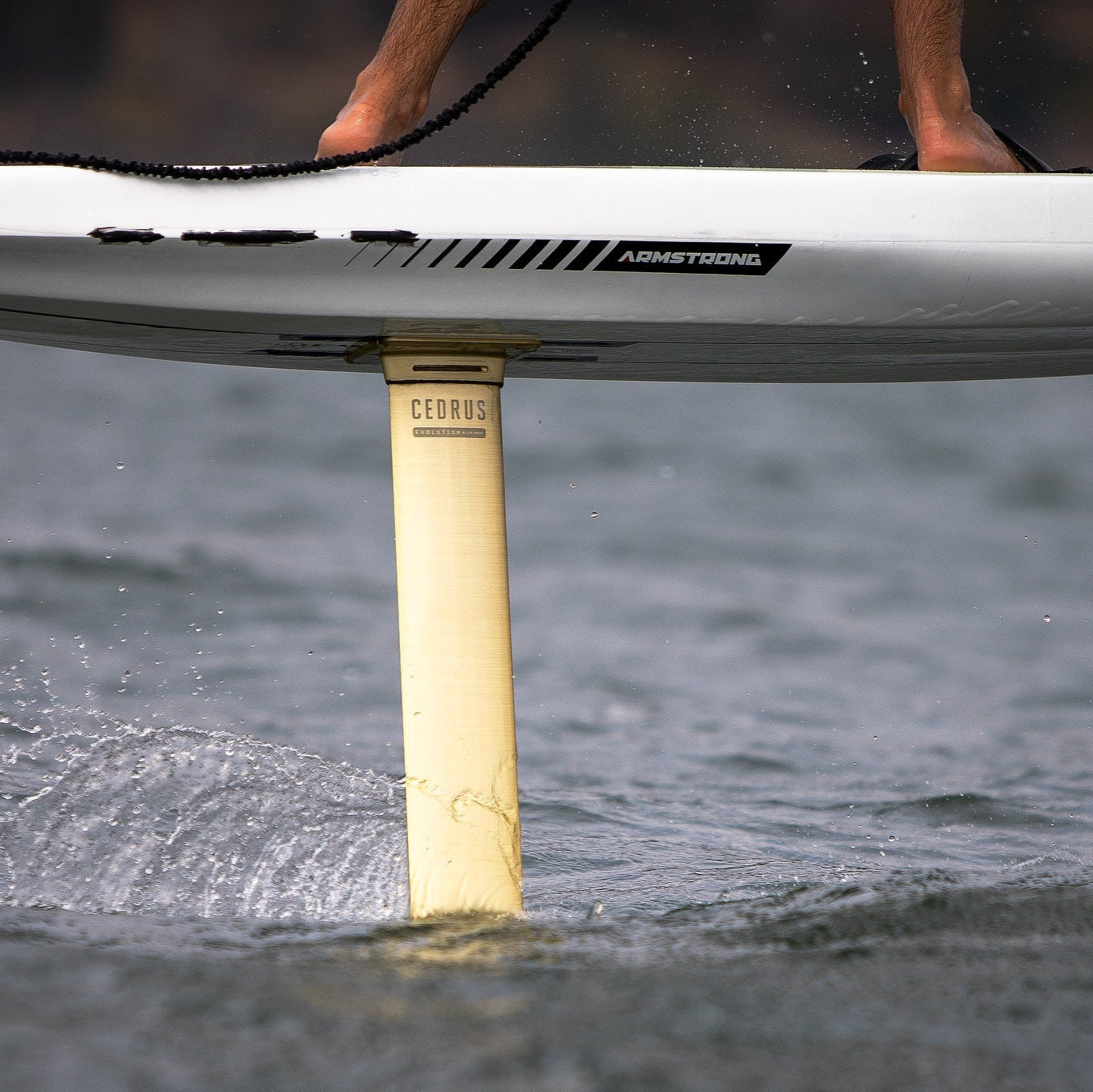

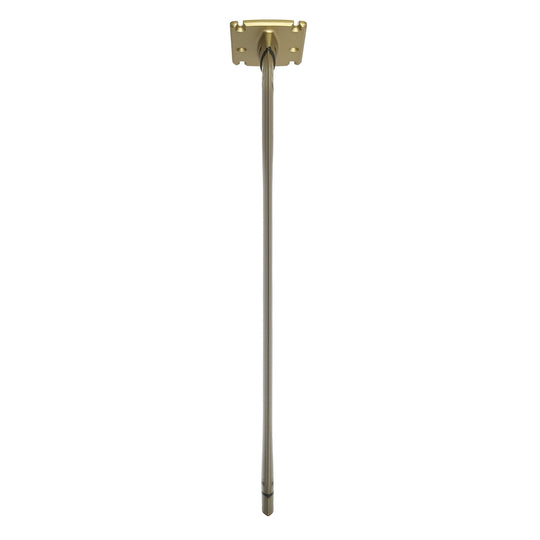

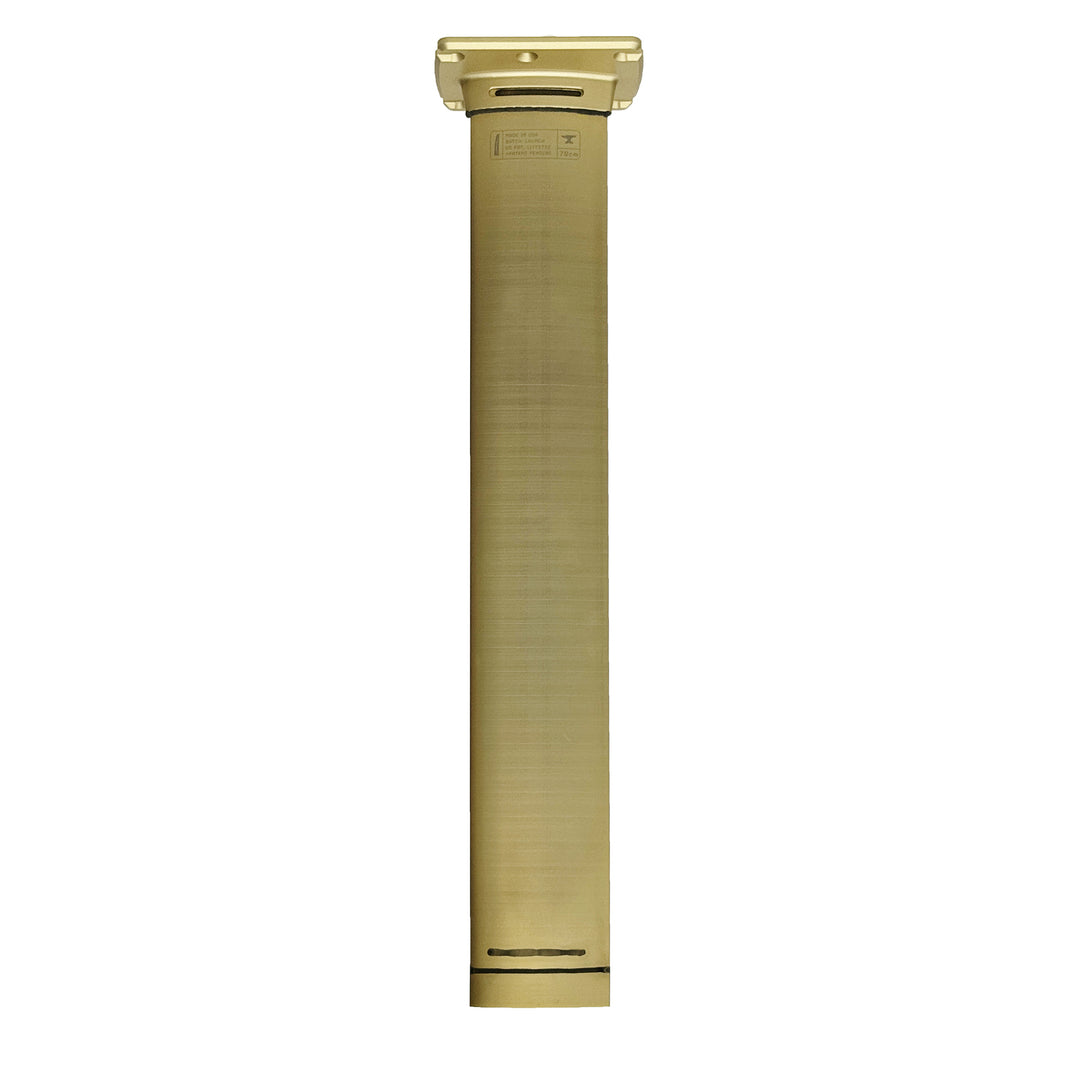

Evolution Aluminum is the world's first and only tapered aluminum hydrofoil mast, offering the performance of high modulus carbon at less than half the price. The proprietary welded assembly eliminates loose hardware and water ingress common to all other aluminum masts. The highly engineered extrusion is lighter than most solid carbon offerings, and results in a mast that is only 1lb/0.5kg heavier than Cedrus hollow carbon masts. Anodized fade-free gold and with light laser-etched graphics, the mast requires minimal care and maintenance. Available in two distinct models, Evolution Aluminum fills a large gap between Wind and Surf to address new forms of foiling and performance attributes.

Forged:

16mm thick piercing region, 120mm constant chord length
20mm thickness up high, resulting in the stiffest aluminum mast on the market (stiffer than other 19mm masts, most HM carbon masts)
Low drag, for better pumping performance and higher top end speeds
Patented ventilation-resistant design for wing and kite foiling
4.5lbs/2kg @ 78cm, 4.8lbs/2.2kg @ 85cm
All-around, balanced mast at the intersection of Surf and Wind for performance prone, DW, parawing, big wave tow, and wind-powered forms of foiling
Evolution Adapter Interface: Compatible with all foils using precision machined adapters

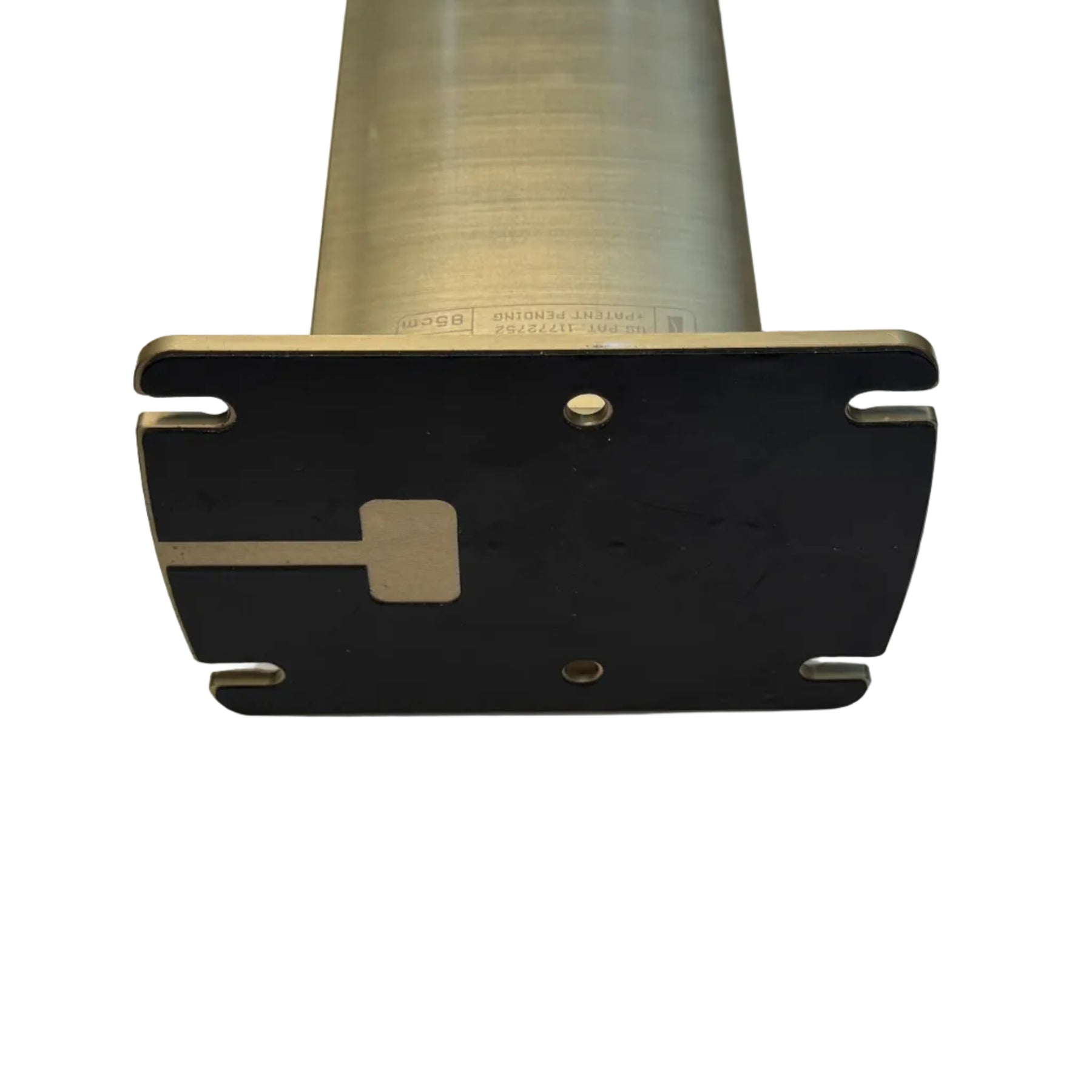

Foil Drive compatible board mount

Clydesdale:

Constant 20mm thick x 118mm chord length profile
Low wetted area, for easier paddle-up starts and pump foiling
Extreme stiffness for the largest of foils (tested with 2m+ span)
Equivalent weight to the Forged model
Optimized for lower-speed foiling with extra large foils: Pump, Dockstart, Wake, beginner prone and DW
Evolution Adapter Interface: Compatible with all foils using precision machined adapters
Foil Drive compatible board mount

Are you a beginner looking to get into foiling? Evolution Aluminum will last a lifetime, adapting to your style and foil preferences as you learn and progress. Are you an advanced rider looking for multiple lengths in your quiver? You can now ride 2-3 aluminum masts for the price of 1 carbon, without sacrificing performance. Don't like stressing about paint, reef damage, or have a tendency to be hard on your gear? We dare you to break this mast, which has been field and bench tested with the biggest span foils. Existing Surf or Wind owner and want to leverage your existing adapter library? Evolution Aluminum will have a different yet familiar feel with all your favorite foils, all for 1/3 the price of either carbon mast.

For a detailed discussion and comparison of mast stiffness, read this blog entry.

Haptic Feedback: We have found through months of testing that certain foils can produce acoustic and haptic feedback when paired with Evolution Aluminum. Due to the thin walls, high stiffness, and hollow channel that does not fill with water, the mast can transmit whistles and hums at specific frequencies with certain foils. We have learned to appreciate this feedback, and found that it can be mitigated by changing ride height, angle to weather, speed, or wing loading. Rider weight, board size, and other variables like water density can affect the response. It is a complex system dynamic. Composite materials (including carbon fiber) and rubber have much better damping characteristics, so if you desire a quiet ride, we recommend Evolution Wind or Surf. All other aluminum masts are held together by screws, mounts, and doodads, and typically fill with water, and will therefore not transmit vibrations or acoustic energy.

Mast does not include adapter; please order your adapters with your mast, even if out of stock. We have many more on order, and will split shipping if need be in order to get you riding!

$600.00

Shipping calculated at checkout.

In stock, ready to ship
Out of stock; Contact us or preorder

Backlog as of 9/23 Out of Stock Masts: November Delivery. Maybe sooner, but we don't want to over-promise.

[{"id":48903778664756,"title":"Forged \/ 70","option1":"Forged","option2":"70","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Evolution Aluminum Mast - Forged \/ 70","public_title":"Forged \/ 70","options":["Forged","70"],"price":60000,"weight":2041,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869854183732,"title":"Forged \/ 75","option1":"Forged","option2":"75","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Forged \/ 75","public_title":"Forged \/ 75","options":["Forged","75"],"price":60000,"weight":2041,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869864571188,"title":"Forged \/ 78","option1":"Forged","option2":"78","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Forged \/ 78","public_title":"Forged \/ 78","options":["Forged","78"],"price":60000,"weight":2087,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869864603956,"title":"Forged \/ 82","option1":"Forged","option2":"82","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Forged \/ 82","public_title":"Forged \/ 82","options":["Forged","82"],"price":60000,"weight":2132,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869864636724,"title":"Forged \/ 85","option1":"Forged","option2":"85","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Forged \/ 85","public_title":"Forged \/ 85","options":["Forged","85"],"price":60000,"weight":2155,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869865062708,"title":"Forged \/ Custom","option1":"Forged","option2":"Custom","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Forged \/ Custom","public_title":"Forged \/ Custom","options":["Forged","Custom"],"price":70000,"weight":2268,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48880743219508,"title":"Clydesdale \/ 72","option1":"Clydesdale","option2":"72","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Evolution Aluminum Mast - Clydesdale \/ 72","public_title":"Clydesdale \/ 72","options":["Clydesdale","72"],"price":50000,"weight":1996,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48911402664244,"title":"Clydesdale \/ 75","option1":"Clydesdale","option2":"75","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Clydesdale \/ 75","public_title":"Clydesdale \/ 75","options":["Clydesdale","75"],"price":50000,"weight":2041,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48880743317812,"title":"Clydesdale \/ 78","option1":"Clydesdale","option2":"78","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Clydesdale \/ 78","public_title":"Clydesdale \/ 78","options":["Clydesdale","78"],"price":50000,"weight":2041,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48869865128244,"title":"Clydesdale \/ Custom","option1":"Clydesdale","option2":"Custom","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Aluminum Mast - Clydesdale \/ Custom","public_title":"Clydesdale \/ Custom","options":["Clydesdale","Custom"],"price":55000,"weight":2268,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Sound too good to be true? Watch the first official review:

Adapters and Accessories

Choose the mast that's right for you.

DISCIPLINE SPECIFIC DESIGN

The needs of a lightweight prone foiler differ from those of an aggressive winger. Achieving an optimized solution with a single design is no longer possible, so we engineered two very distinct masts to better suit the diverse range of riders.

Evolution Surf retains stiffness with much less drag and sportier turns due to reduced thickness and wetted area throughout the hydrodynamically critical region of the mast.

How to Choose Your Mast

Foiler executing an extreme turn on a wave, elevating the surf experience on a Cedrus Evolution Surf hydrofoil mast, blending speed with precision.

High-clarity image detailing the seamless integration of a Cedrus hydrofoil mast, foil adapter, and titanium hardware screws, with components precisely spaced to highlight the meticulous design and effortless assembly.

Endless Possibiliities

INVEST IN A SINGLE MAST

Cedrus masts redefine versatility as the only truly universal foil mast, which means you’re not locked into a single foil brand. This one investment will allow you to stay current and evolve as quickly as the sport changes without buying another mast.

The new patented adapter interface of Evolution Cedrus combines the industry’s strongest custom M8 screws and tightest manufacturing tolerances with additional M10 hardware to ensure that your foil connection is stiffer and stronger.

Learn About Compatibility

More than just stiffness

A STRONGER UNIVERSAL MAST

Cedrus lead the industry movement towards a stiffer mast, and the Evolution masts introduce new patented hydrodynamic concepts that will truly make this the all-around best performing mast. This new design offers a more progressive feel as ride height changes through the water column, so it’s easier to lift off the water and stay there.

The shorter lengths of Evolution Surf are optimized to address drag with reduced thickness and wetted area, ensuring longer glides, fewer pumps, and faster top-end speeds while improving ventilation resistance over the Classic.

Cross-section illustration of a Cedrus mast, highlighting its pioneering features: a lightweight hollow core and edges made from a semi-flexible polymer. This design not only optimizes for performance with less material but also emphasizes safety, with the softer edges posing a minimal threat to both the rider and marine life in the event of a collision, underscoring Cedrus' commitment to responsible and sustainable hydrofoil technology.

Unique to Cedrus Masts

THE SAFEST MAST ON THE MARKET

Cedrus is the first and only foil component employing non-structural leading and trailing edges. The semi-flexible polymer reduces weight, improves safety for both the rider and sea life, and is more damage tolerant and easy to repair than carbon composites. With a new manufacturing process that enables lower volume edges and more structural material into a thinner profile, the Evolution mast gains stiffness, strength, and speed on one of the industry’s lightest masts.

High Quality Design

ADVANCED ENGINEERING

The Evolution mast's performance isn't just about the materials used; it's about smart design. Drawing on years of expertise in fields from aerospace to consumer products, we've crafted a mast that sets new standards in the industry.

Using Finite Element Analysis (FEA) and tests from our unique rig, we ensure our designs are superior through engineering. The mast uses intermediate modulus fiber, striking the perfect balance between stiffness and strength, while the durable aluminum board mount can withstand impact loads from abuse without scrapping a mast. Both Evolution Wind & Surf models offer unmatched stiffness and strength with less weight and drag, redefining what's possible.

A performance graph for various Cedrus Evolution Masts, showcasing their lift against the drag. The graph represents the advanced engineering behind the Evolution masts, with curves indicating the nuanced balance of lift, drag, and moment for optimized performance. This is a visual representation of Cedrus' commitment to innovative design through rigorous testing and smart engineering, achieving masts that offer unparalleled stiffness and strength with minimized weight and drag.

Manufactured Responsibly

Someone submerged in the ocean where only his hands holding a Cedrus mast are visible above the water. Demonstrating its hollow architecture and lightweight design that doesn’t compromise on strength while also being good for the environment

LESS WASTE

Using up-cycled materials from Boeing and a hollow design minimizes waste and shipping emissions. Our commitment extends to packaging, using 100% recycled or reused materials despite the higher costs and logistical challenges.

Close detail of a Cedrus mast mounted to a board showing the extreme high quality that is made to last a long time under heavy use

LONG LASTING

Our masts are built to endure a lifetime of heavy use, with a warranty rate of <1% since launching he Classic in 2017. This durability reflects our sound engineering and design while minimizing the environmental impact of our products.

LOCALLY MADE

Manufactured outside Seattle, our masts boast enhanced quality control and reduced environmental impact by cutting down on transportation distances.

SMALL BATCHES

We produce in small batches to refine continuously and avoid overproduction. This approach prevents waste, eliminates excess inventory, and allows each mast to be tailored to individual customer needs.
