Name: Evolution Surf Mast
Brand: Project Cedrus
Price: 1700.0 USD
Availability: InStock

Foiler executing an extreme turn on a wave, elevating the surf experience on a Cedrus Evolution Surf hydrofoil mast, blending speed with precision.

Evolution Surf pioneered the short-chord length revolution when it launched in 2023, and has recently undergone a 2025 facelift bringing enhanced performance and cosmetics. With reduced wetted area in the hydrodynamically critical region of the mast, Evolution Surf offers more efficient pumping and wave connections than OEM foil masts. These masts have become popular among downwind foilers, and offer more pivot-like turns whether you are slashing surf or swell. Evolution Surf offers a more progressive feel under varying ride heights than traditional tapered masts, but rewards riders for staying high with a predictable ride. The mast is engineered for low to mid speed performance in the 5-15kt range, where ventilation is less common and riders are more sensitive to drag.

Key Features:

Optimized for prone and DW foiling with a focus on glide and agility
The lightest production carbon mast at 3.5lbs/1.6kg @ 77.5cm
Reduced chord length piercing region for lower drag and sportier turns
Constant 16mm thickness in piercing region, 19mm above
Optimized hydrodynamics for superior glide and good ventilation resistance
Evolution Adapter Interface: Compatible with all foils using precision machined adapters
Available in two layup options, both masts feature the same profile and shape

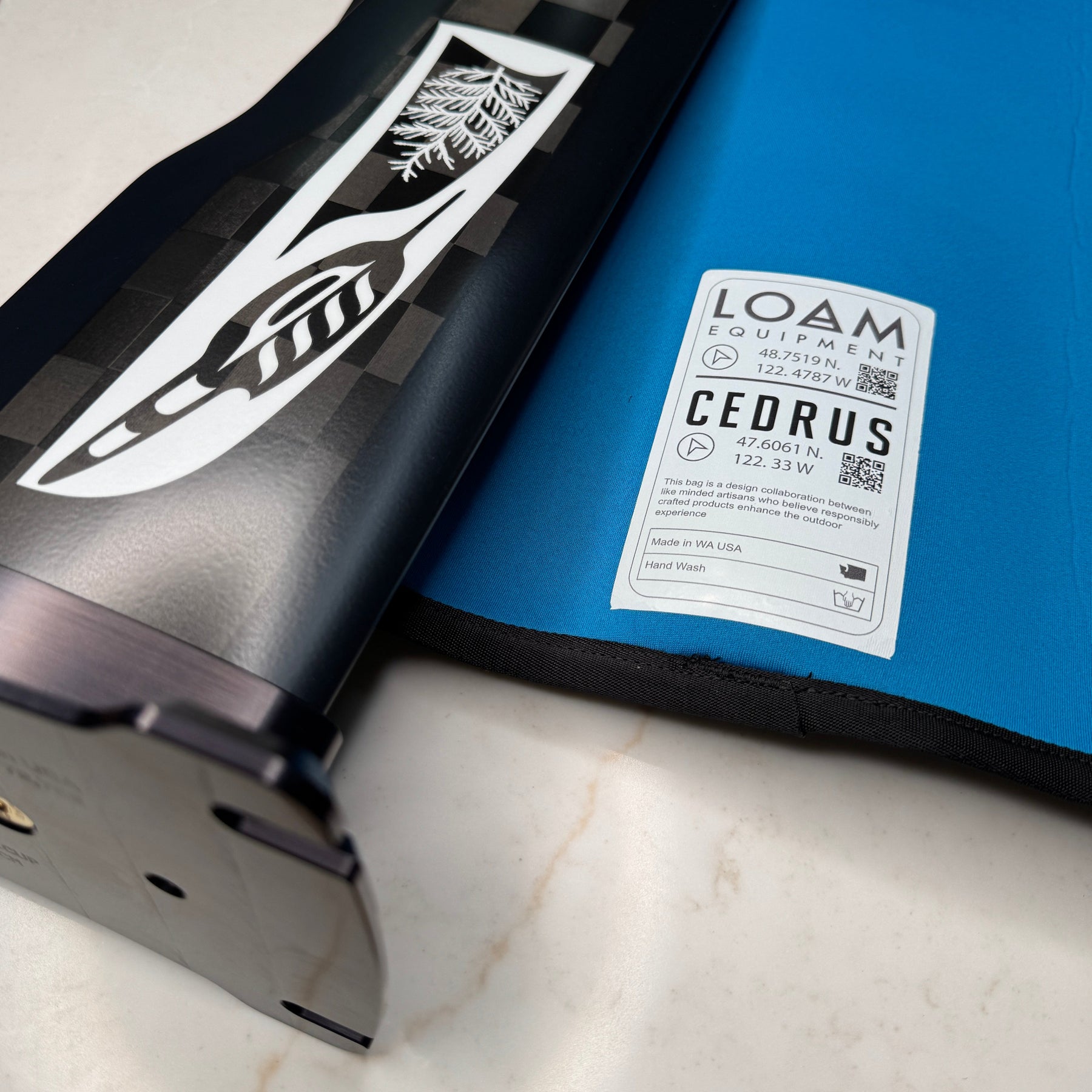

Now includes neoprene mast sleeve (shipping October)

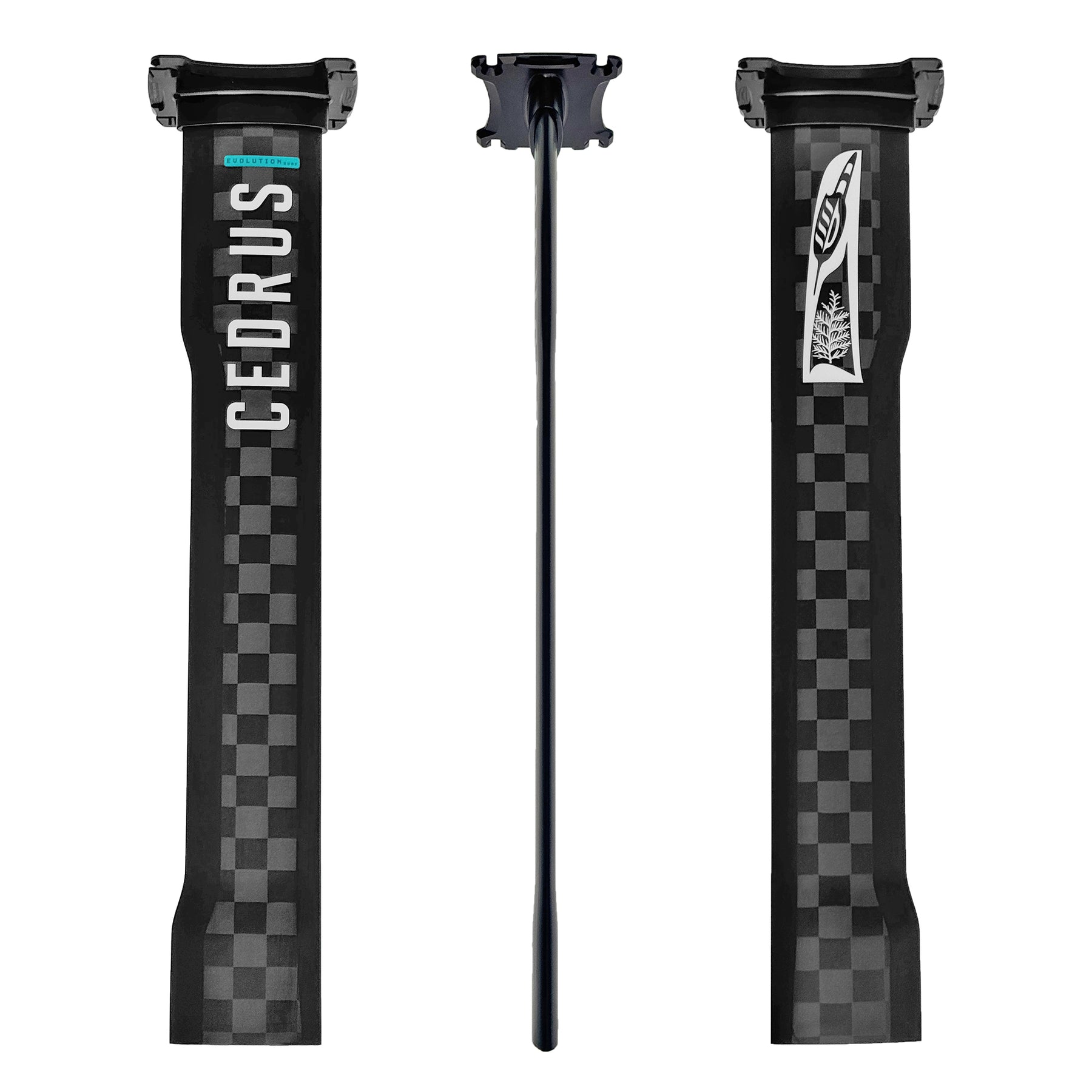

Intermediate Modulus (IM) offers industry benchmark stiffness for average size riders (<200lbs) riding small to mid size performance foils (<1200mm span). This layup features improved torsional stiffness from the original Surf mast, actually matching that of Evolution Wind. The outer ply has been updated to the same spread tow fabric, and now covers the entire length of the mast.

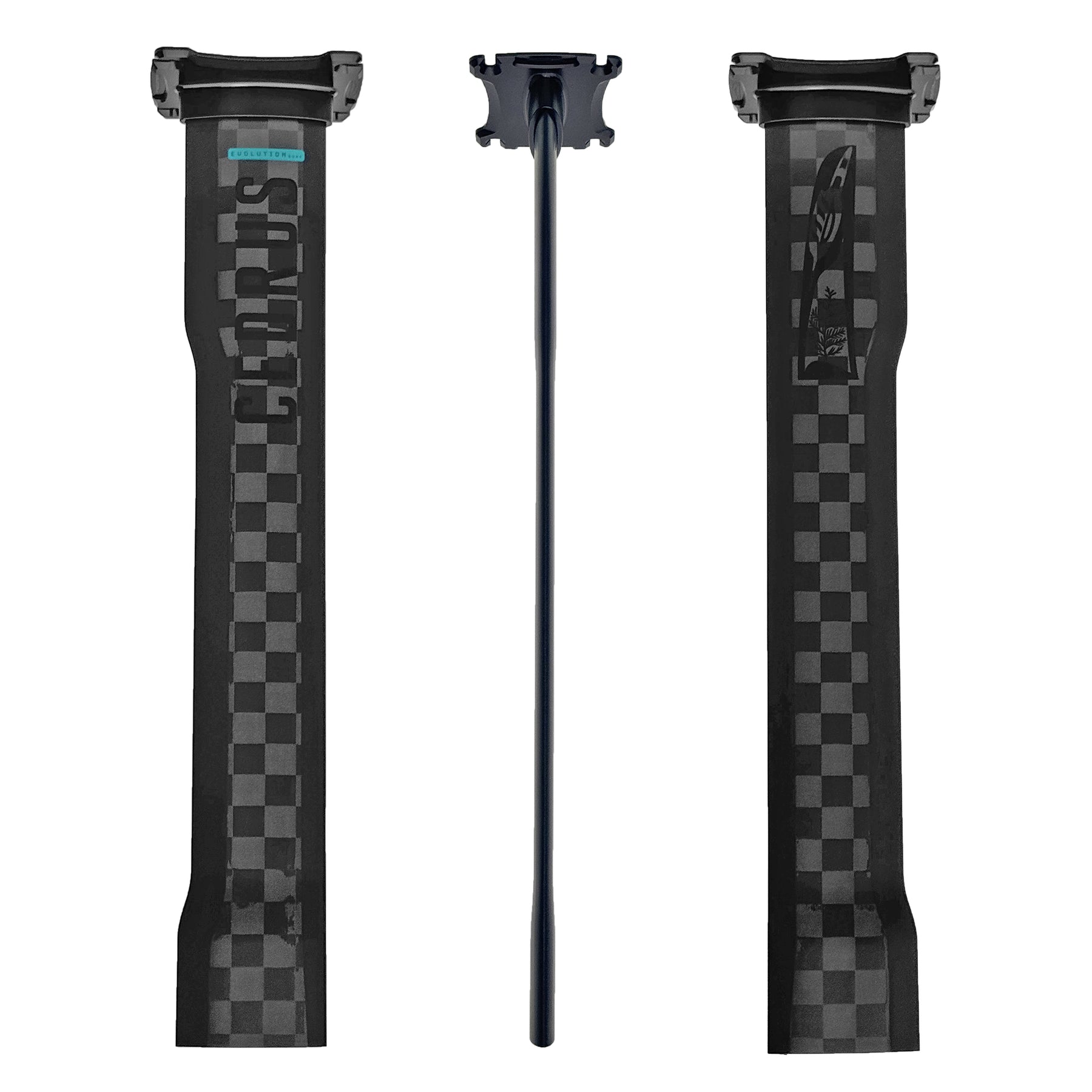

Ultra High Modulus (UHM) masts feature a 100% UHM prepreg laminate for maximum stiffness without sacrificing strength thanks to the unique Cedrus architecture and aluminum board mont. These masts are ideal for larger riders, those riding long span foils, or DW racers looking to maximize pumping efficiency. UHM material is thinner and more expensive than IM and HM carbon prepreg, increasing labor and material costs. As a result, this mast carries a significant price premium over the IM version with a 30% increase in stiffness. UHM masts feature stealth black graphics, and the same spread tow cosmetic ply.

For an in-depth discussion on mast stiffness, see our blog entry here.

To have your mast assembled with a Foil Drive specific mount, please purchase the mount in addition to your mast here.

$1,700.00

Shipping calculated at checkout.

Price includes mast and board mount. Please order your foil adaptor with your mast.

In stock, ready to ship
Out of stock; Contact us or preorder

Cedrus carbon masts are made to order.

This allows us to be more efficient with our time and working capital, minimize waste, react more quickly to market trends, and ultimately build a better product. Usually we assemble 2-3 masts at a time, and if resources allow, we make popular lengths as extra for "in-stock" purchases. If your desired length is not in stock, "Out of stock" masts will be assembled in 2-5 weeks following purchase. Please contact us if you have concerns about exact lead time and availability, for example if you are leaving on a trip and need by a certain date. If you're in a crunch, we can loan an aluminum mast at no charge while we build your carbon!

[{"id":47499798675764,"title":"65 \/ Intermediate Modulus","option1":"65","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 65 \/ Intermediate Modulus","public_title":"65 \/ Intermediate Modulus","options":["65","Intermediate Modulus"],"price":170000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987118900,"title":"65 \/ Ultra High Modulus","option1":"65","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 65 \/ Ultra High Modulus","public_title":"65 \/ Ultra High Modulus","options":["65","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798708532,"title":"67.5 \/ Intermediate Modulus","option1":"67.5","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 67.5 \/ Intermediate Modulus","public_title":"67.5 \/ Intermediate Modulus","options":["67.5","Intermediate Modulus"],"price":170000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987151668,"title":"67.5 \/ Ultra High Modulus","option1":"67.5","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 67.5 \/ Ultra High Modulus","public_title":"67.5 \/ Ultra High Modulus","options":["67.5","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798741300,"title":"70 \/ Intermediate Modulus","option1":"70","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 70 \/ Intermediate Modulus","public_title":"70 \/ Intermediate Modulus","options":["70","Intermediate Modulus"],"price":170000,"weight":1417,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987184436,"title":"70 \/ Ultra High Modulus","option1":"70","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 70 \/ Ultra High Modulus","public_title":"70 \/ Ultra High Modulus","options":["70","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798774068,"title":"72.5 \/ Intermediate Modulus","option1":"72.5","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 72.5 \/ Intermediate Modulus","public_title":"72.5 \/ Intermediate Modulus","options":["72.5","Intermediate Modulus"],"price":170000,"weight":1451,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987217204,"title":"72.5 \/ Ultra High Modulus","option1":"72.5","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 72.5 \/ Ultra High Modulus","public_title":"72.5 \/ Ultra High Modulus","options":["72.5","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798806836,"title":"75 \/ Intermediate Modulus","option1":"75","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 75 \/ Intermediate Modulus","public_title":"75 \/ Intermediate Modulus","options":["75","Intermediate Modulus"],"price":170000,"weight":1474,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987249972,"title":"75 \/ Ultra High Modulus","option1":"75","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 75 \/ Ultra High Modulus","public_title":"75 \/ Ultra High Modulus","options":["75","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798839604,"title":"77.5 \/ Intermediate Modulus","option1":"77.5","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 77.5 \/ Intermediate Modulus","public_title":"77.5 \/ Intermediate Modulus","options":["77.5","Intermediate Modulus"],"price":170000,"weight":1497,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987282740,"title":"77.5 \/ Ultra High Modulus","option1":"77.5","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 77.5 \/ Ultra High Modulus","public_title":"77.5 \/ Ultra High Modulus","options":["77.5","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798872372,"title":"80 \/ Intermediate Modulus","option1":"80","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 80 \/ Intermediate Modulus","public_title":"80 \/ Intermediate Modulus","options":["80","Intermediate Modulus"],"price":170000,"weight":1531,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987315508,"title":"80 \/ Ultra High Modulus","option1":"80","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 80 \/ Ultra High Modulus","public_title":"80 \/ Ultra High Modulus","options":["80","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798905140,"title":"82.5 \/ Intermediate Modulus","option1":"82.5","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 82.5 \/ Intermediate Modulus","public_title":"82.5 \/ Intermediate Modulus","options":["82.5","Intermediate Modulus"],"price":170000,"weight":1542,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987348276,"title":"82.5 \/ Ultra High Modulus","option1":"82.5","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 82.5 \/ Ultra High Modulus","public_title":"82.5 \/ Ultra High Modulus","options":["82.5","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47499798937908,"title":"85 \/ Intermediate Modulus","option1":"85","option2":"Intermediate Modulus","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 85 \/ Intermediate Modulus","public_title":"85 \/ Intermediate Modulus","options":["85","Intermediate Modulus"],"price":170000,"weight":1588,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48890987381044,"title":"85 \/ Ultra High Modulus","option1":"85","option2":"Ultra High Modulus","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Evolution Surf Mast - 85 \/ Ultra High Modulus","public_title":"85 \/ Ultra High Modulus","options":["85","Ultra High Modulus"],"price":220000,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Don't take our word for it

I’ve been on several very stiff masts so I can feel if the mast is not stiff enough as I weight 190lbs. The Evolution was definitely stiff and clocked as fast as any other top end mast. You’ve got a solid product with the added bonus of adaptability to any foil.
JC
Shop Owner

★★★★★
The mast is amazing, I’m so very happy with it. Been DW a bunch and surfing it in waves. The increase in control is phenomenal. Zero ventilation and I’m so much more confident in every aspect, its really impressive.
MB
AUS

★★★★★
Evolution Cedrus mast is the stiffest and fastest mast I have ridden to date, using for wake, surf, and wing. Outstanding build quality and design, the adapter fit is tight, and does not introduce any flex into the system. As foil design advances quickly, it’s a huge benefit to be able to use the same mast with multiple brands of foils vs being stuck with a single system!
AR
Florida

★★★★★
My Mast finally was delivered on Monday and I had my first session with it yesterday. Wow I could feel the difference immediately, so slippery and light and the pumping was a breeze. Totally amazed and will be singing your praises for sure.
BS
New Zealand

★★★★★
THE mast is very good! So stiff and so direct! THE release from the bottom turn is very very nice!
TS
Japan

Adapters and Accessories

Choose the mast that's right for you.

DISCIPLINE SPECIFIC DESIGN

The needs of a lightweight prone foiler differ from those of an aggressive winger. Achieving an optimized solution with a single design is no longer possible, so we engineered two very distinct masts to better suit the diverse range of riders.

Evolution Surf retains stiffness with much less drag and sportier turns due to reduced thickness and wetted area throughout the hydrodynamically critical region of the mast.

How to Choose Your Mast

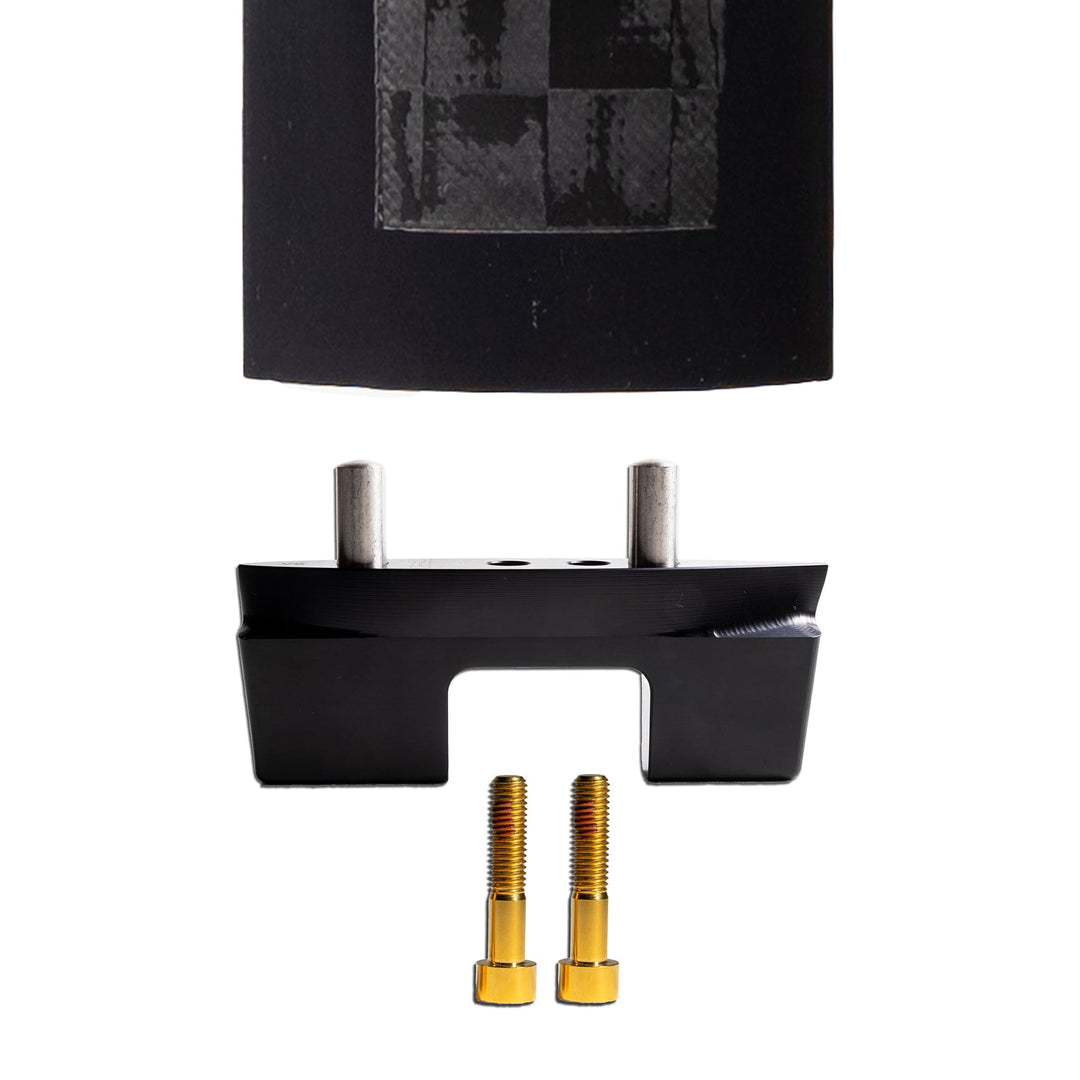

High-clarity image detailing the seamless integration of a Cedrus hydrofoil mast, foil adapter, and titanium hardware screws, with components precisely spaced to highlight the meticulous design and effortless assembly.

Endless Possibiliities

INVEST IN A SINGLE MAST

Cedrus masts redefine versatility as the only truly universal foil mast, which means you’re not locked into a single foil brand. This one investment will allow you to stay current and evolve as quickly as the sport changes without buying another mast.

The new patented adapter interface of Evolution Cedrus combines the industry’s strongest custom M8 screws and tightest manufacturing tolerances with additional M10 hardware to ensure that your foil connection is stiffer and stronger.

Learn About Compatibility

More than just stiffness

A STRONGER UNIVERSAL MAST

Cedrus lead the industry movement towards a stiffer mast, and the Evolution masts introduce new patented hydrodynamic concepts that will truly make this the all-around best performing mast. This new design offers a more progressive feel as ride height changes through the water column, so it’s easier to lift off the water and stay there.

The shorter lengths of Evolution Surf are optimized to address drag with reduced thickness and wetted area, ensuring longer glides, fewer pumps, and faster top-end speeds while improving ventilation resistance over the Classic.

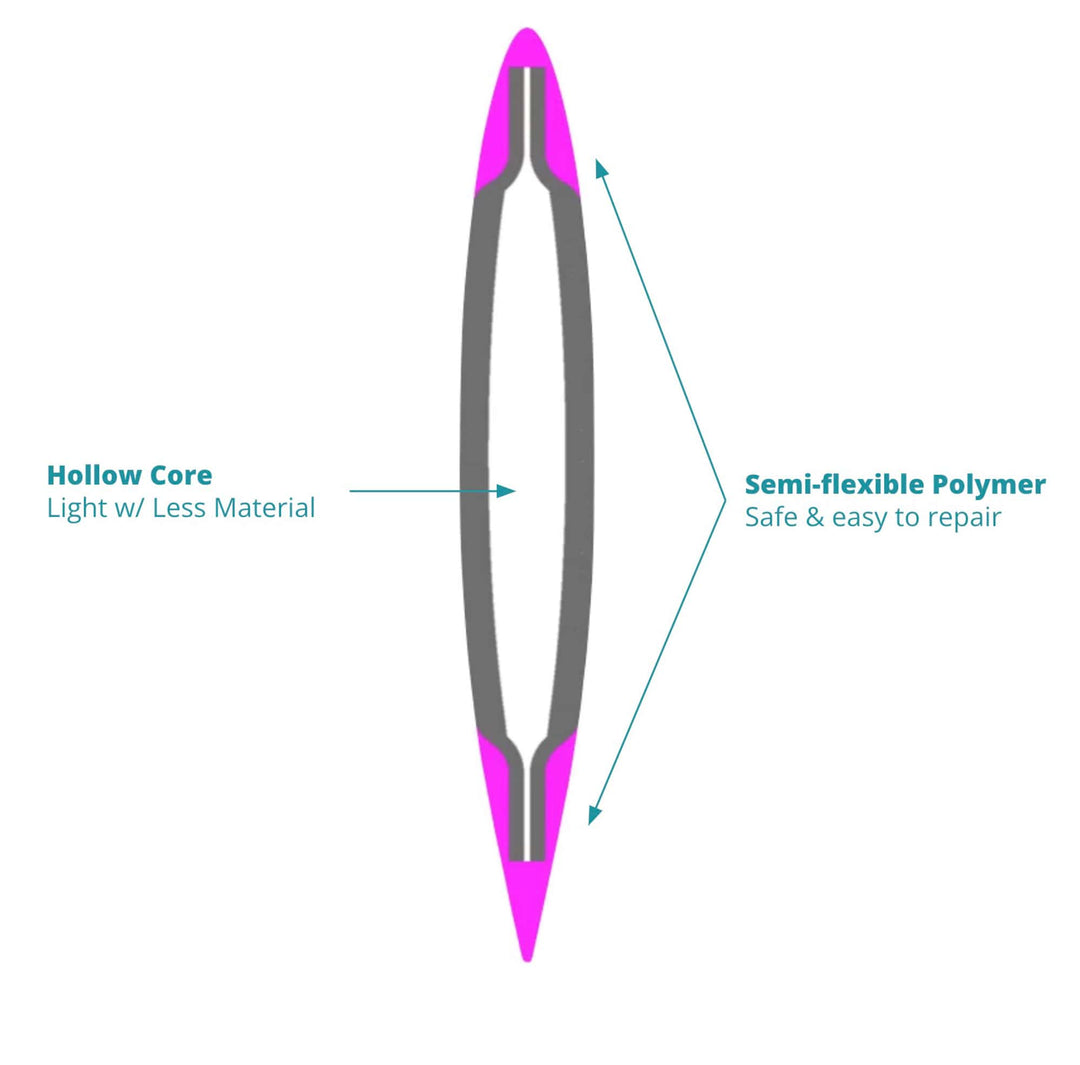

Cross-section illustration of a Cedrus mast, highlighting its pioneering features: a lightweight hollow core and edges made from a semi-flexible polymer. This design not only optimizes for performance with less material but also emphasizes safety, with the softer edges posing a minimal threat to both the rider and marine life in the event of a collision, underscoring Cedrus' commitment to responsible and sustainable hydrofoil technology.

Unique to Cedrus Masts

THE SAFEST MAST ON THE MARKET

Cedrus is the first and only foil component employing non-structural leading and trailing edges. The semi-flexible polymer reduces weight, improves safety for both the rider and sea life, and is more damage tolerant and easy to repair than carbon composites. With a new manufacturing process that enables lower volume edges and more structural material into a thinner profile, the Evolution mast gains stiffness, strength, and speed on one of the industry’s lightest masts.

High Quality Design

ADVANCED ENGINEERING

The Evolution mast's performance isn't just about the materials used; it's about smart design. Drawing on years of expertise in fields from aerospace to consumer products, we've crafted a mast that sets new standards in the industry.

Using Finite Element Analysis (FEA) and tests from our unique rig, we ensure our designs are superior through engineering. The mast uses intermediate modulus fiber, striking the perfect balance between stiffness and strength, while the durable aluminum board mount can withstand impact loads from abuse without scrapping a mast. Both Evolution Wind & Surf models offer unmatched stiffness and strength with less weight and drag, redefining what's possible.

A performance graph for various Cedrus Evolution Masts, showcasing their lift against the drag. The graph represents the advanced engineering behind the Evolution masts, with curves indicating the nuanced balance of lift, drag, and moment for optimized performance. This is a visual representation of Cedrus' commitment to innovative design through rigorous testing and smart engineering, achieving masts that offer unparalleled stiffness and strength with minimized weight and drag.

Manufactured Responsibly

Someone submerged in the ocean where only his hands holding a Cedrus mast are visible above the water. Demonstrating its hollow architecture and lightweight design that doesn’t compromise on strength while also being good for the environment

LESS WASTE

Using up-cycled materials from Boeing and a hollow design minimizes waste and shipping emissions. Our commitment extends to packaging, using 100% recycled or reused materials despite the higher costs and logistical challenges.

Close detail of a Cedrus mast mounted to a board showing the extreme high quality that is made to last a long time under heavy use

LONG LASTING

Our masts are built to endure a lifetime of heavy use, with a warranty rate of <1% since launching he Classic in 2017. This durability reflects our sound engineering and design while minimizing the environmental impact of our products.

LOCALLY MADE

Manufactured outside Seattle, our masts boast enhanced quality control and reduced environmental impact by cutting down on transportation distances.

SMALL BATCHES

We produce in small batches to refine continuously and avoid overproduction. This approach prevents waste, eliminates excess inventory, and allows each mast to be tailored to individual customer needs.
